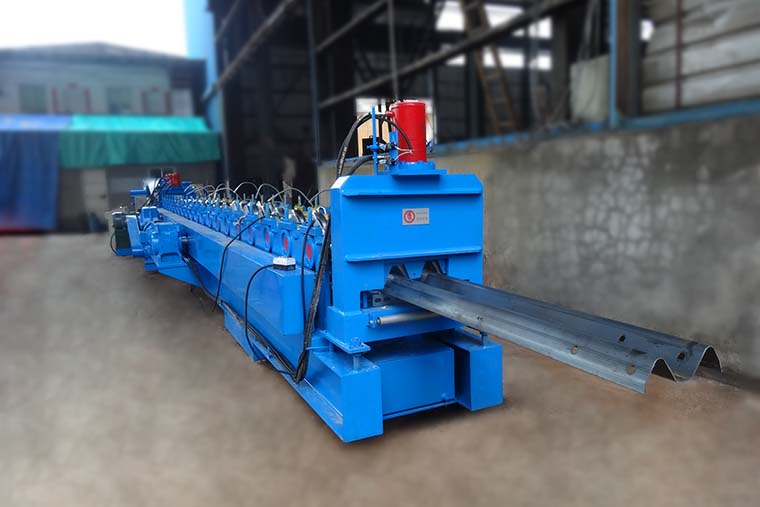

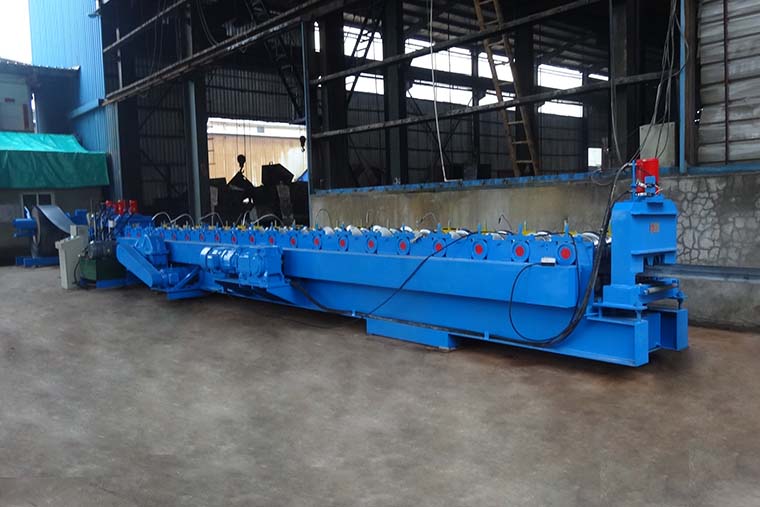

Highway Guardrail Machine

                          Highway Guardrail Machine

1.Main features of highway guardrail roll forming machine

    The advantages of highway guardrail machine are as follows:

    1.Beautiful appearance

    2.Accuracy profile

    3.Easy operation, low maintenance cost

2.Detailed Images of highway guardrail roll forming machine

    Machine Parts

        1) highway guardrail machine punching

        Brand: BMS    Original: China

        with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.

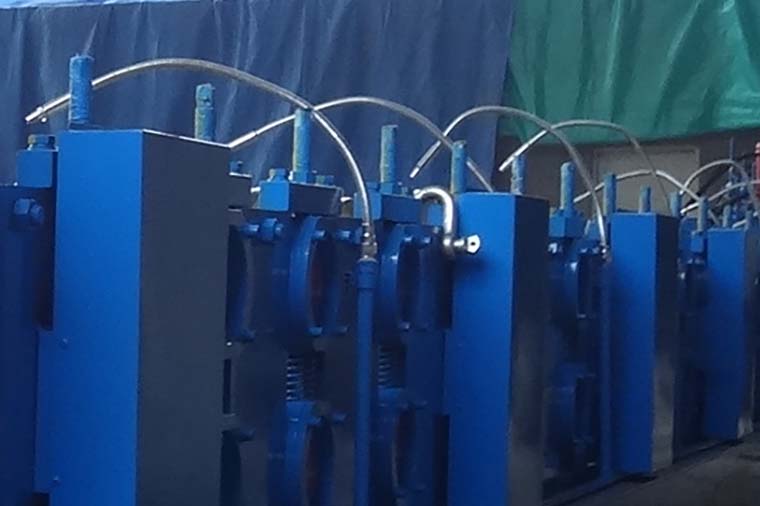

        2)  highway guardrail machine water cooling device

        Rollers manufactured from high quality steel Cr12, CNC lathes, with water cooling device  Heat Treatment.

        With feeding material guide, body framemade from 400# H type steel by welding

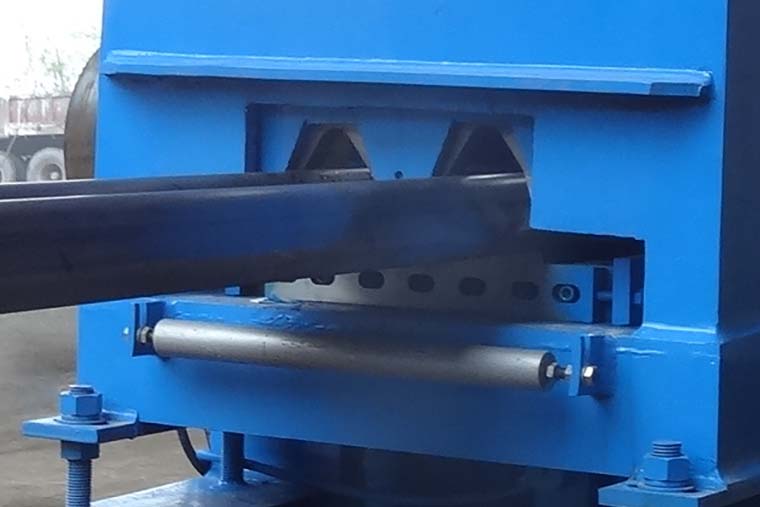

       3) highway guardrail machine post cutter

        made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 30mm steel plate by welding
        Pre-punching , stop to punch, stop to cut
        hydraulic motor:11KW, Hydraulic pressure range: 0-16Mpa

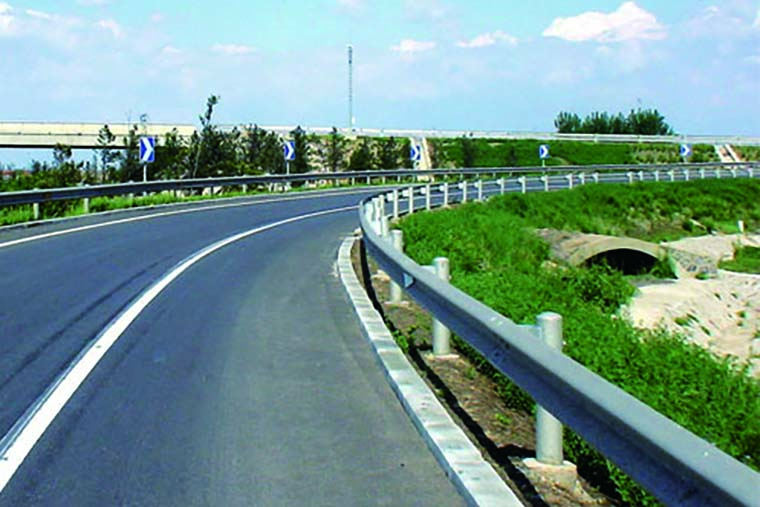

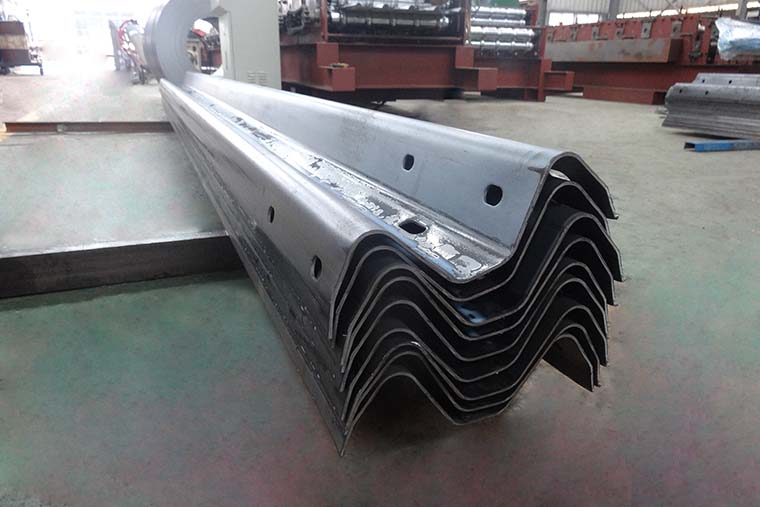

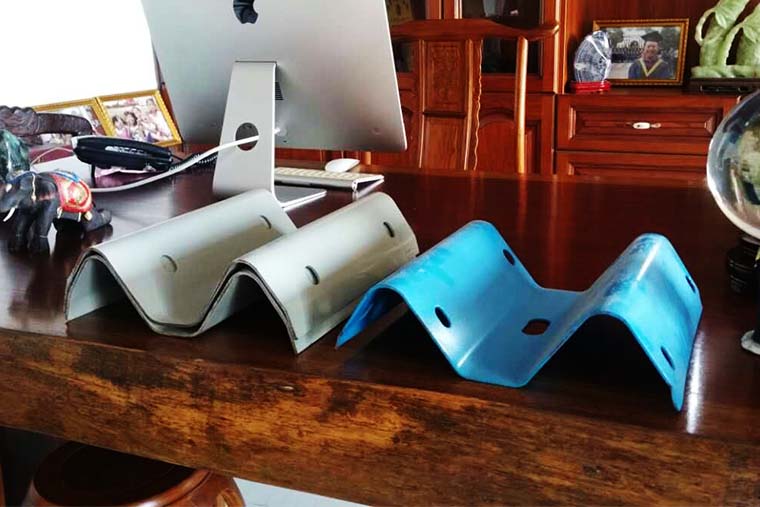

        4) highway guardrail machine product show

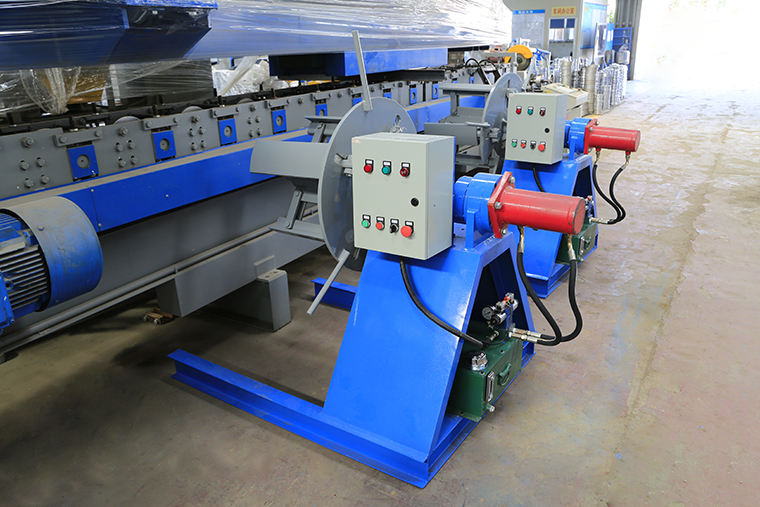

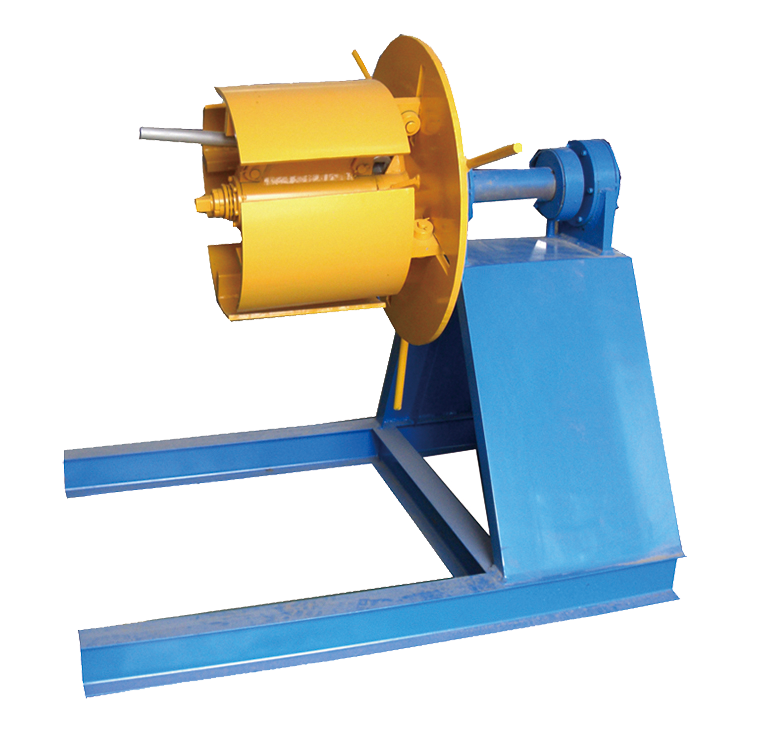

        5) highway guardrail machine decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 3Ton

        With 3 tons hydraulic decoiler for option

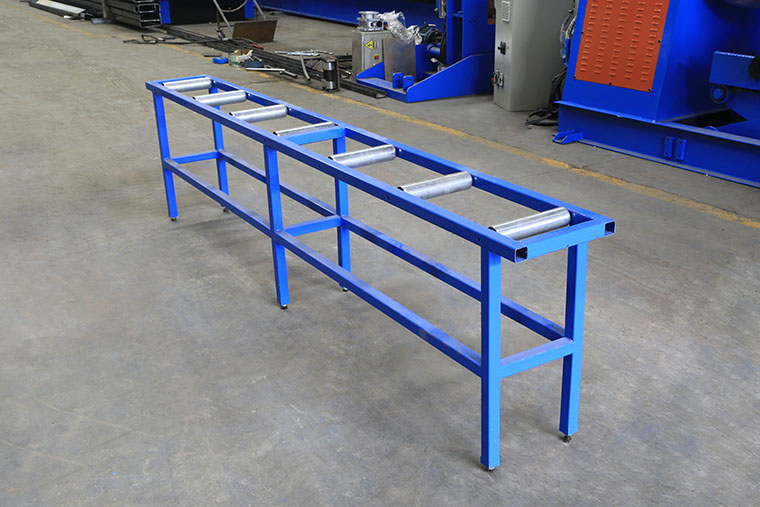

        6) highway guardrail machine exit rack

        Un-powered,two units

Other detailes of highway guardrail roll forming machine

Suitable for material with thickness 1.5-3.5mm

Shafts manufactured from 45#,Main shaft diameter=φ90mm,precision machined

Motor driving,Gear chain transmission, 16 rollers to form and 4 rollers for straightening and levelling

Main motor=18.5KW , Frequency speed control. Forming speed approx.18m/min

PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English

After-sale service of highway guardrail machine

1. The warranty of highway guardrail machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.

Terms of trade

1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
