Waktu Pimpin :
45Pelabuhan Pengiriman :
Xiamen portpembayaran :
TT/LCPlease Click Here To View The Video
Material Thickness: 1.5-2.5mm
Applicable material:Galvanized Steel(GI),Cold Roll Steel(CRC)
With yield strength :245-345Mpa

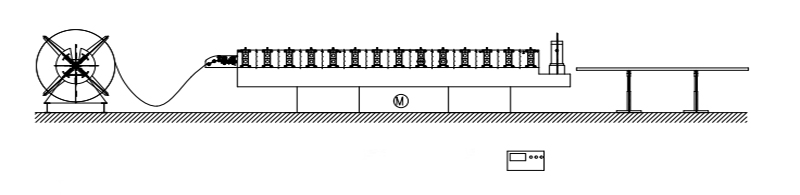

Decoiler→Feed Guide Device→Rolling Forming System→Hydraulic Post Cutting Device→Exit Rack

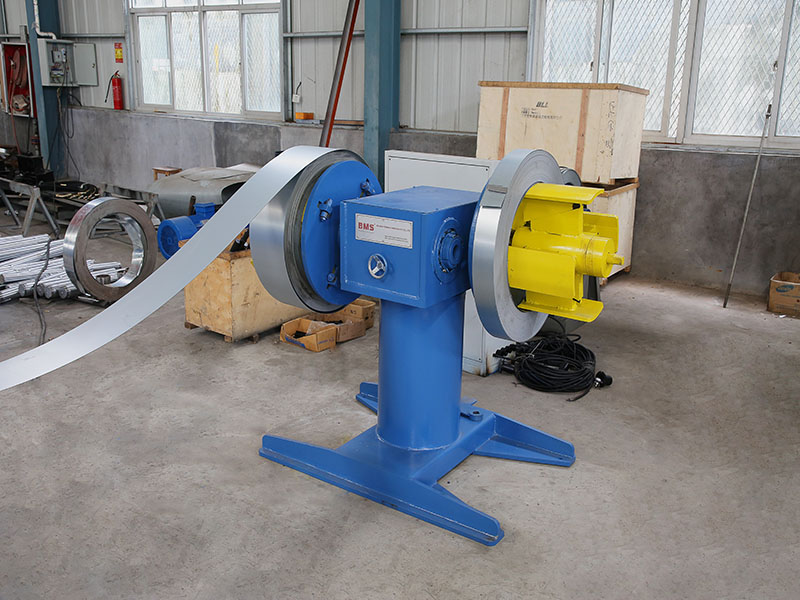

Un-powered, Manually control steel coil inner bore shrinkage and stop Max Feeding width: 300mm,coil ID range 508mm±30mm Capacity: Max. 3 Ton

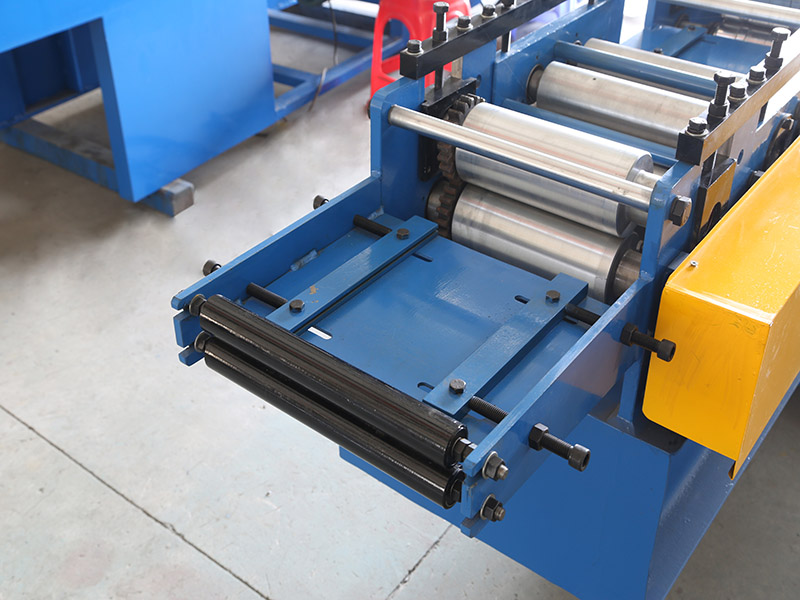

The guiding position can be adjusted for suitable material feeding
Body frame made from H400 type steel by welding
Side wall thickness: Q235 t18mm

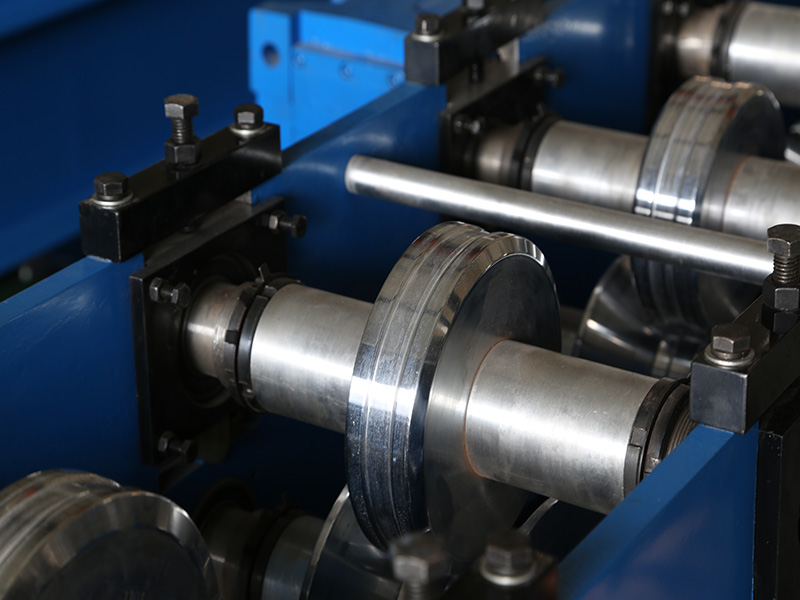

Rollers manufactured from GCr15(=EN31 Steel),CNC lathes,Heat Treatment,hard Chrome Coated,with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Shafts Diameter=ф75mm,precision machined
Gear/Sprocket driving,about 18-step to form

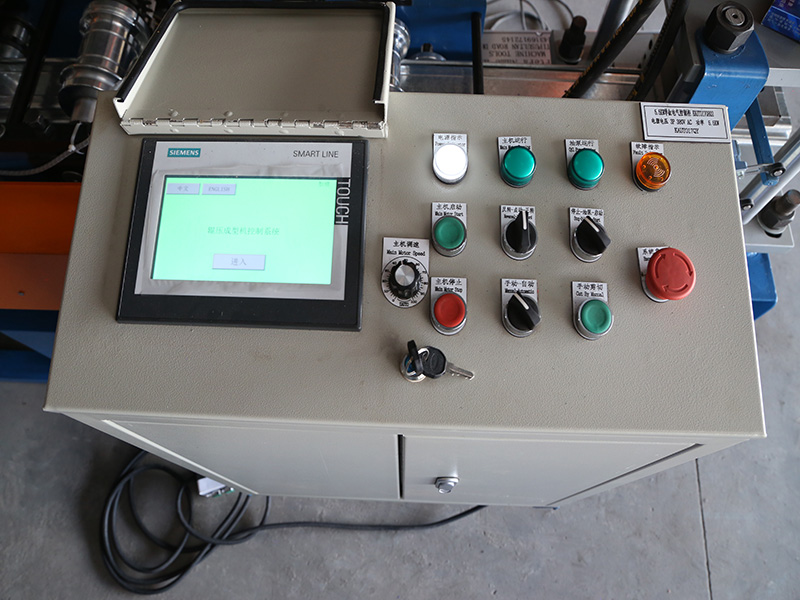

Main Motor(Polaroid brand)=11KW,Frequency speed control
Real forming speed 15-18m/min(Not include cutting time)

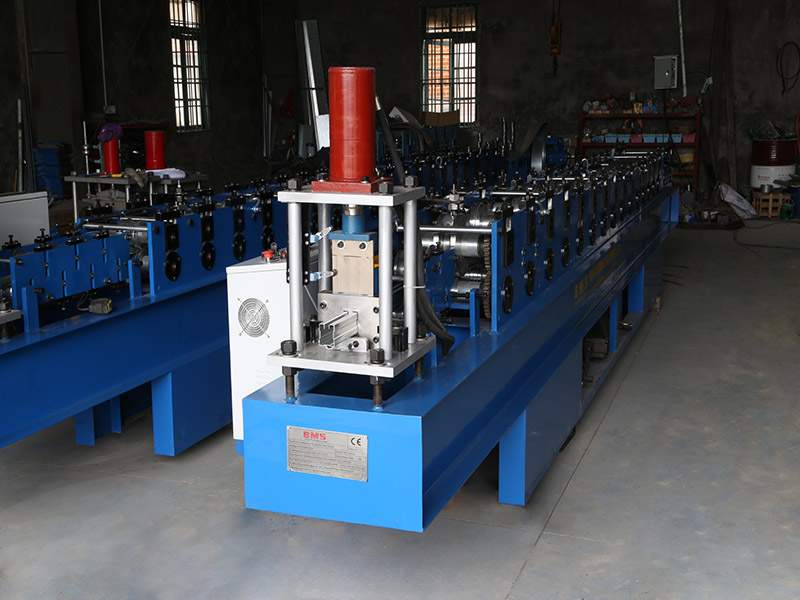

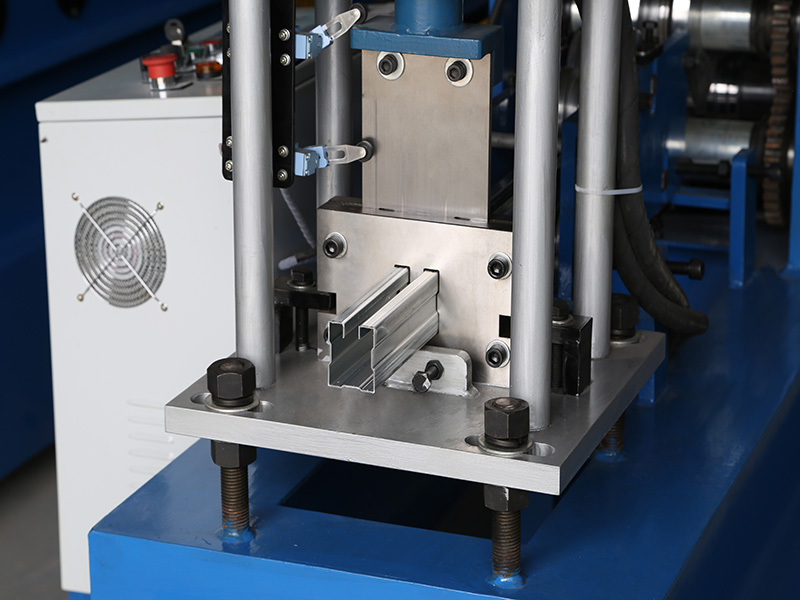

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 4KW
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine Independent hydraulic station
Un-powered, Two units,with rollers on it for easy movement
1. The warranty is 24 months after the client receives the machine.
Within the 24 months, we will courier the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost
Terms Of Trade
1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
Packing Style
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
